At S Cube Mass Transfer Pvt. Ltd., we specialize in manufacturing high-performance column internals used in distillation processes. Using premium-grade raw materials, we ensure that our column internals provide the best performance in your industrial applications. To achieve optimal efficiency in column systems, packings work best when paired with appropriately designed tower distributors, collectors, supports, and other internals. These components ensure the ideal distribution of liquid and vapor across packed beds.
The effectiveness of packed bed systems heavily depends on how well the liquid is distributed across the column. Our range of liquid distributors is designed to meet diverse needs, offering solutions that provide:
Liquid load handling from 0.02 m³/m²h to 400 m³/m²h.
High turndown rate solutions for fluctuating operational conditions.
Distributors for heavily loaded columns, ensuring efficient liquid-vapor separation with minimal pressure drop.
Solutions suitable for suspensions, emulsions, and liquids susceptible to fouling or contamination.
Distributors optimized for dynamic operating conditions.

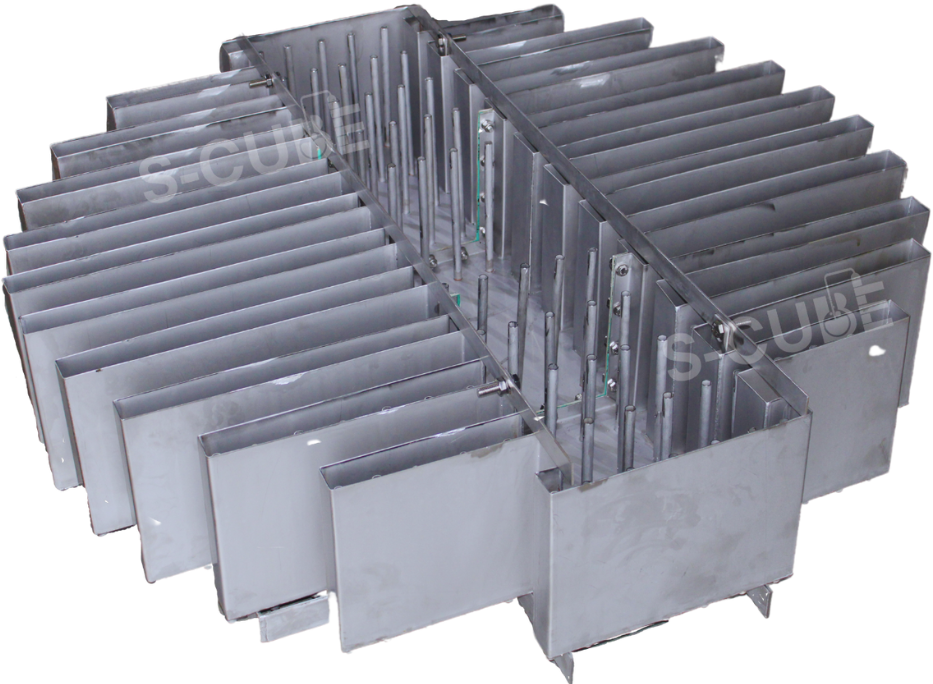

We offer a wide range of liquid distributors designed to meet the specific needs of your operation. From high-efficiency systems for precision applications to rugged solutions for dynamic conditions, we ensure that your column internals perform at their peak. Our products include: Channel Type Distributors, VEP Type Distributors, Through Type Distributor, Pan Type Distributors, Chimney Tray Distributors, Pipe Type Distributors, and Liquid Distributor Cum Collector Solutions. Let S Cube Mass Transfer Pvt. Ltd. help you improve your distillation processes with our expertly designed column internals.
Channel type distributors are flexible and efficient, capable of handling a wide range of liquid loads. These distributors are ideal for large-diameter columns, offering consistent performance across various applications.
Specific Liquid Load: Ranges from 0.05 to 70 m³/m²h.
Column Diameter: Ranges from 0.9 to 10 meters.

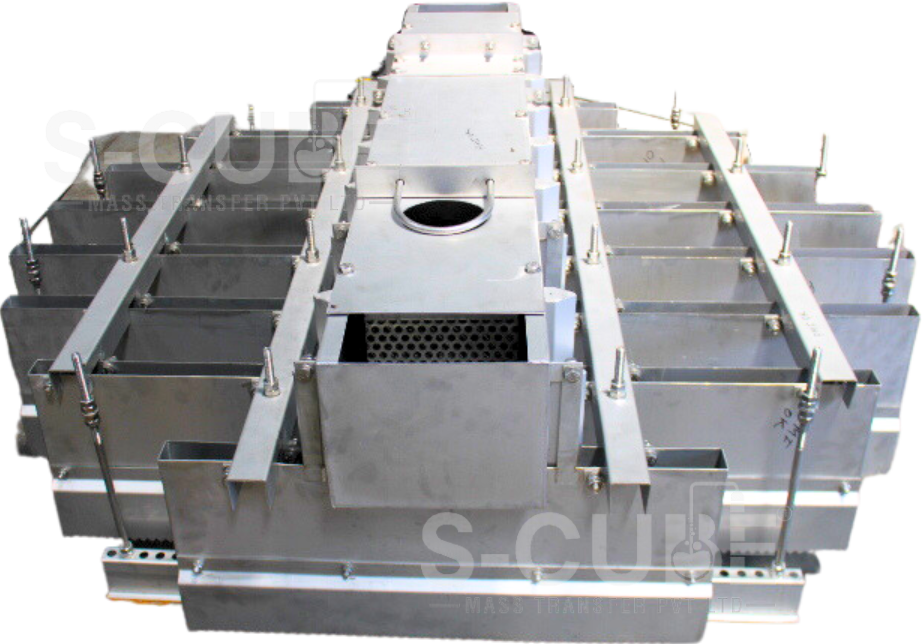

VEP distributors are designed for high-efficiency applications where precise liquid distribution is essential. They ensure accurate performance and are commonly used in applications requiring strict control.
Specific Liquid Load: Ranges from 20 to 70 m³/m²h.
Column Diameter: Ranges from 0.2 to 1.5 meters.

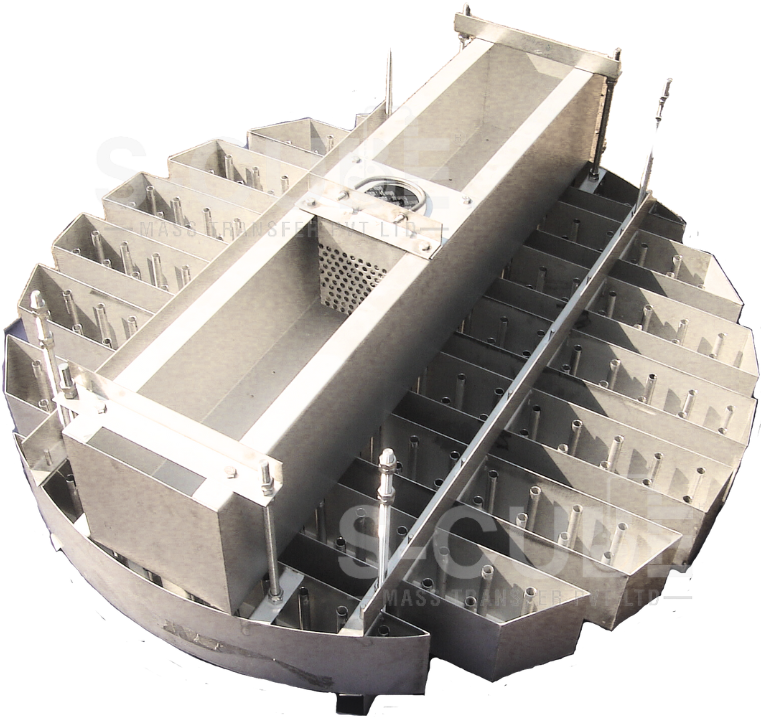

Through type distributors are rugged and versatile, designed for dynamic operations where liquid loads may vary. They offer reliable performance in changing conditions.
Specific Liquid Load: Ranges from 20 to 70 m³/m²h.
Column Diameter: Ranges from 0.25 to 3 meters.

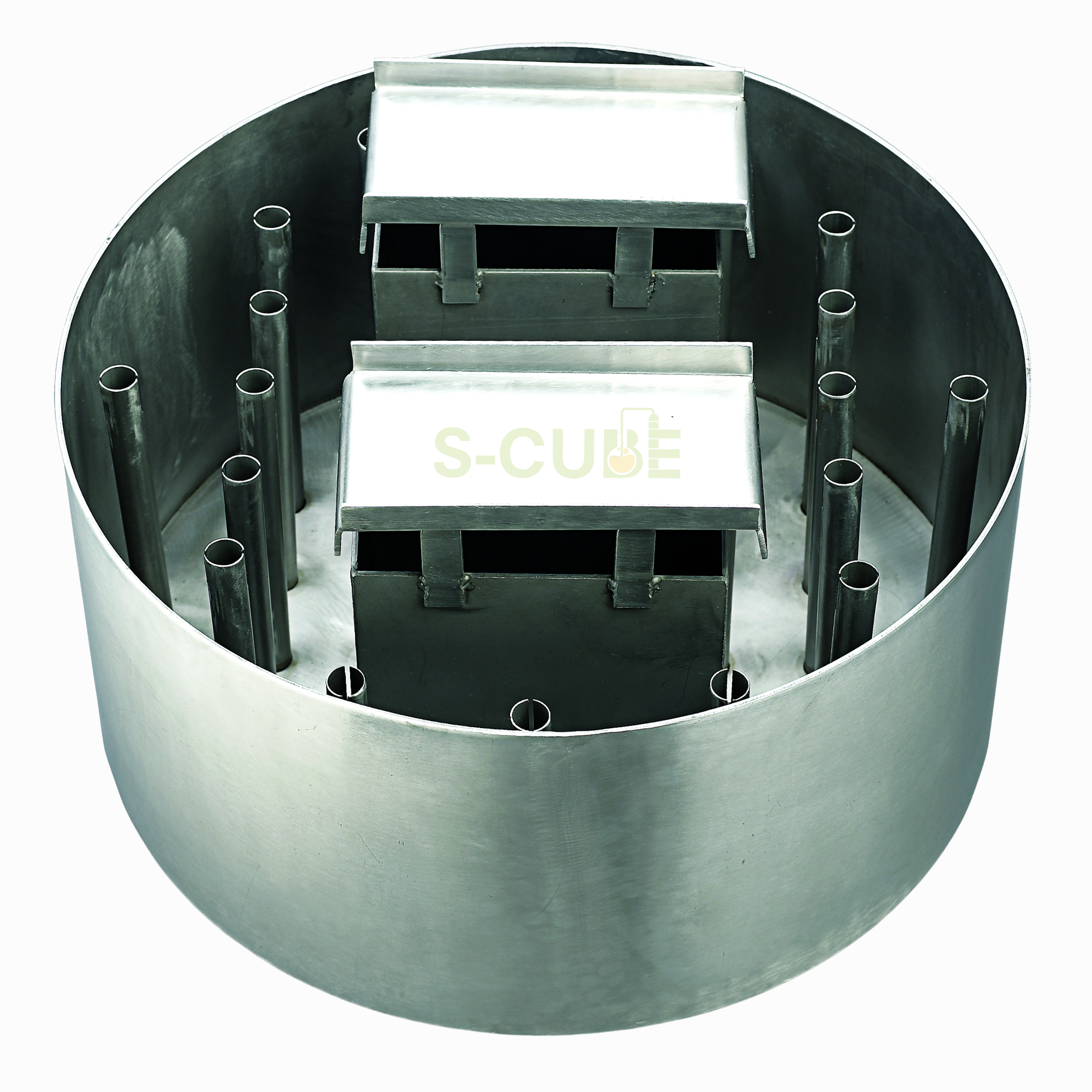

Compact and space-efficient, pan type distributors are designed for columns with limited space, providing excellent liquid distribution in smaller systems.
Specific Liquid Load: Ranges from 20 to 70 m³/m²h.
Column Diameter: Ranges from 0.25 to 3 meters.

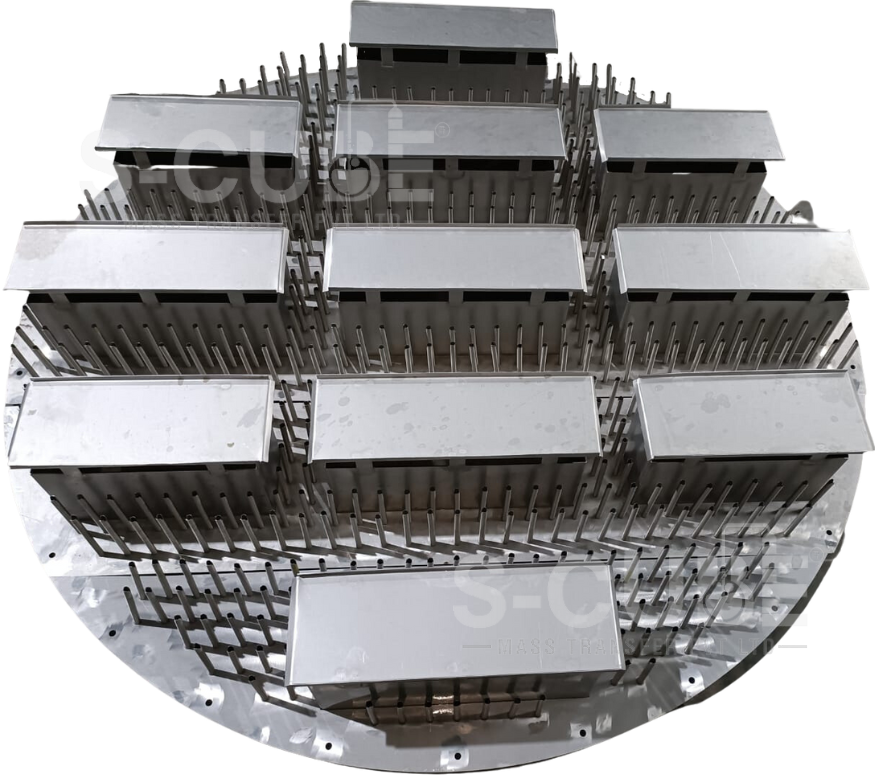

Chimney tray distributors are built for high-capacity operations and can efficiently manage large liquid loads, making them perfect for industrial-scale applications.
Specific Liquid Load: Ranges from 0.02 to 400 m³/m²h.
Column Diameter: Ranges from 0.3 to 8 meters.

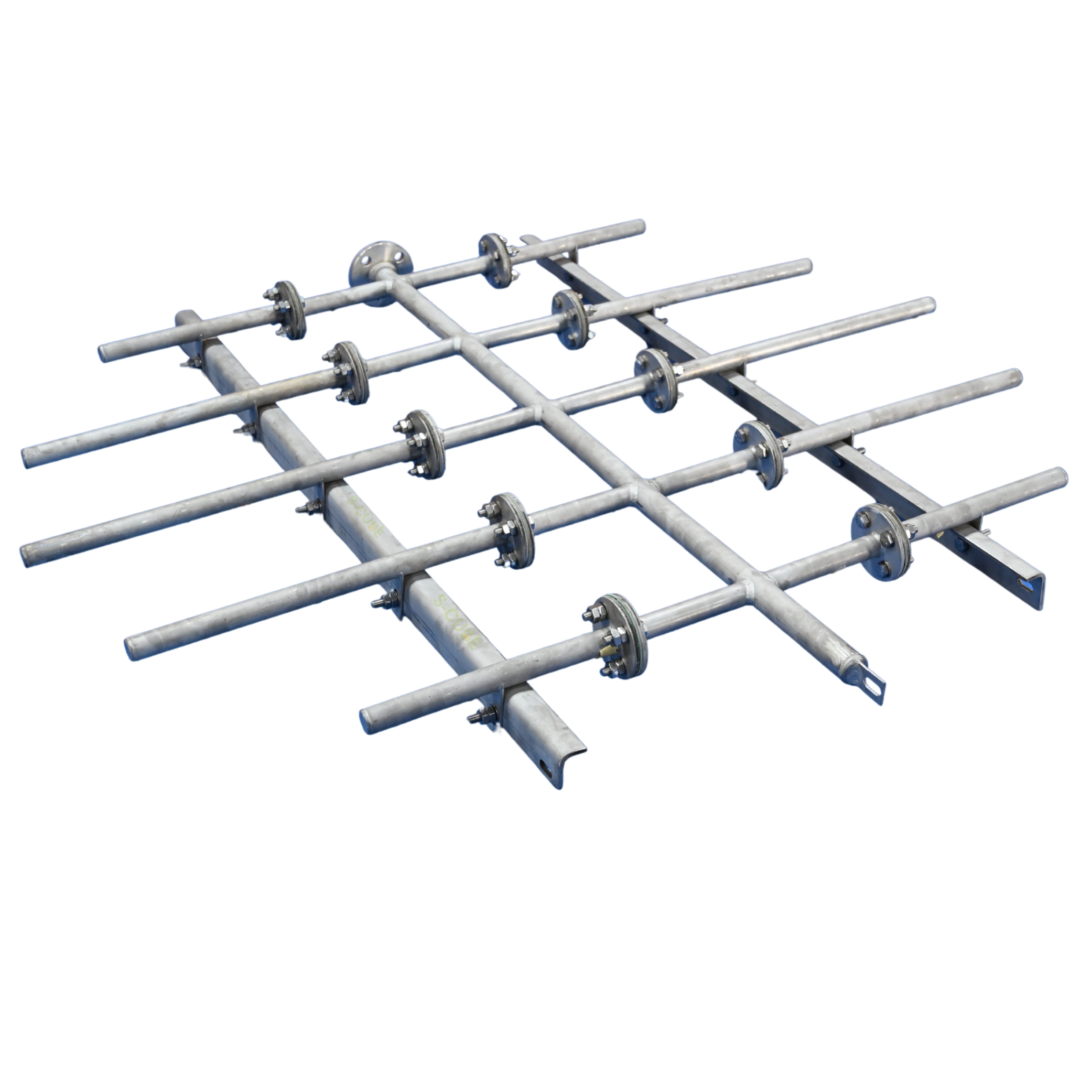

Pipe type distributors are tough and built to withstand extreme conditions, ideal for large-scale industrial applications where reliability and durability are critical.
Specific Liquid Load: Ranges from 100 to 300 m3/m3h
Column Diameter: Ranges from 0.8 to 20 meters.
Conclusion
In conclusion, the choice of distributor type depends on the specific requirements of the operation, such as the liquid load, column diameter, and desired efficiency. Proper selection and design of distributors are essential for the optimal performance of packed columns.
S-Cube Mass Transfer Pvt. Ltd.: Your Partner in Efficiency
At S-Cube Mass Transfer Pvt. Ltd., we stand as a testament to unwavering commitment and innovation. Our liquid distributor solutions embody expertise, authority, and trust, backed by a legacy of successful installations across diverse industries. We understand your unique process requirements, offering tailor-made solutions that optimize efficiency and elevate your operations.
Distributors play a crucial role in the operation of packed columns in the chemical and petrochemical industries. They ensure the uniform distribution of liquid over the packing, which is essential for efficient mass transfer. The table below provides a detailed overview of various distributor types and their specifications:
| Sr. No. | Distributor type | Specific Liquid Load(m³/m²h) | Column Diameter(m) |
|---|---|---|---|
| 1 | Channel type Distributor | 0.05-70 | 0.9-10 |
| 2 | Liquid Distributor VEP | 20-70 | 0.2-1.5 |
| 3 | Through type | 20-70 | 0.25-3 |
| 4 | Pan type | 0.1-100 | 0.25-0.8 |
| 5 | Chimney Tray | 0.1-100 | 0.8-10 |
| 6 | Pipe Type | 100-300 | 0.8-20 |
No matter your application, S Cube Mass Transfer Pvt. Ltd. offers the expertise and quality needed to ensure your liquid distribution systems are optimized for efficiency and reliability. Choose us as your trusted partner for innovative solutions that drive your success.

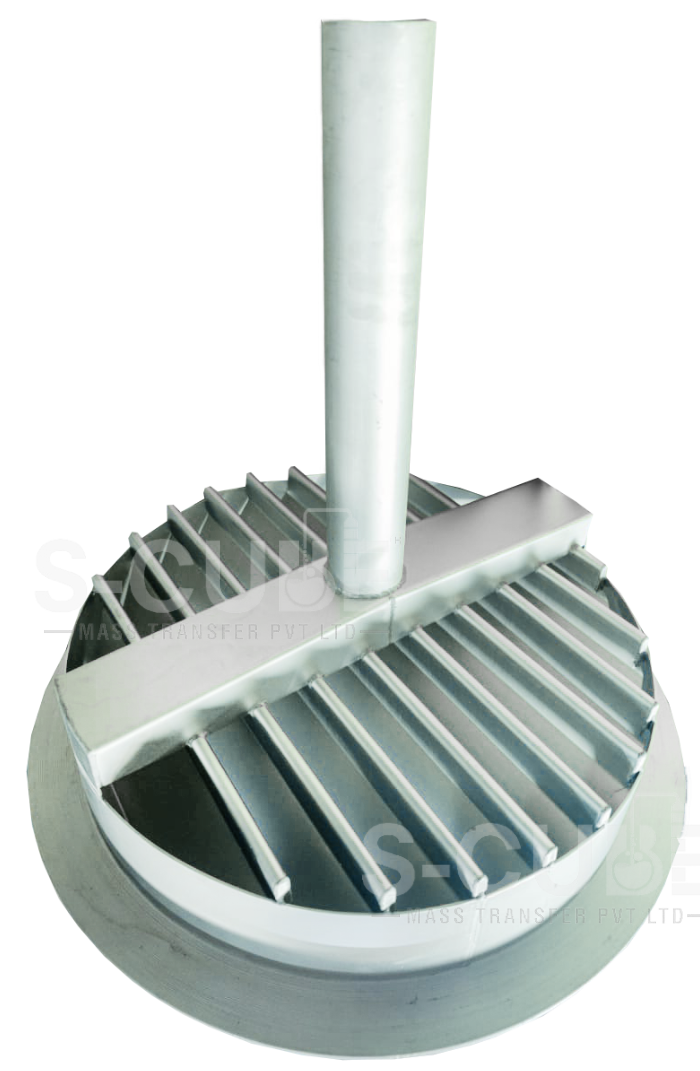

Liquid collectors are essential components in distillation and absorption systems, designed to gather liquid from above the packing bed and ensure uniform vapor distribution. They can be tailored for both total and partial draw-off applications. Key design parameters for liquid collectors include: Open area, Allowable pressure drop, Height of the collector, Liquid and vapor loads, Column diameter, and Quantity of liquid draw-off. By optimizing these parameters, liquid collectors help improve the efficiency and reliability of column systems.

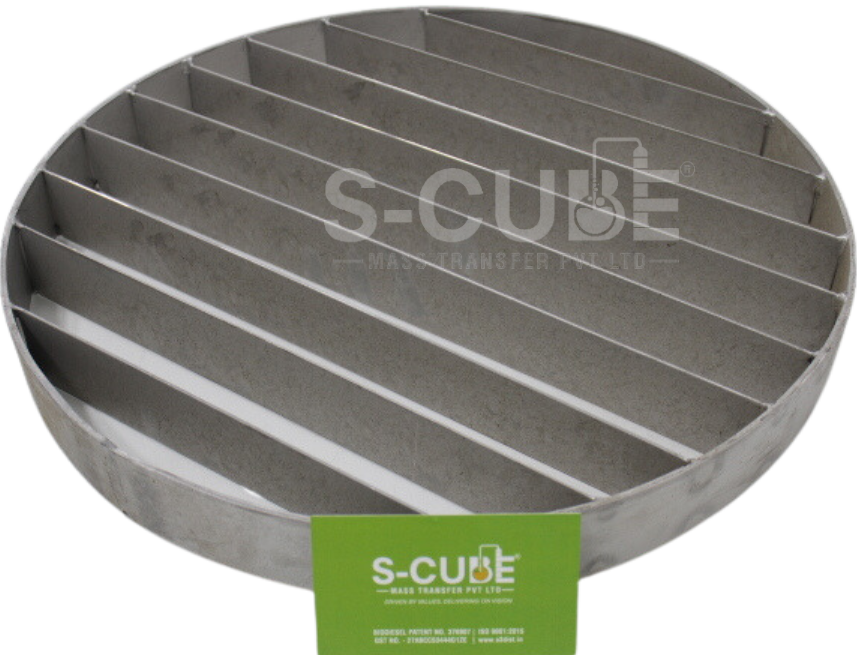

Grid supports are engineered to provide the necessary strength to maintain packed beds during regular operations, ensuring there is no compromise in the column's capacity. These supports facilitate smooth gas and liquid circulation, preventing liquid flooding and ensuring stable operation. By offering solid support, they contribute to maintaining optimal performance within the column system.

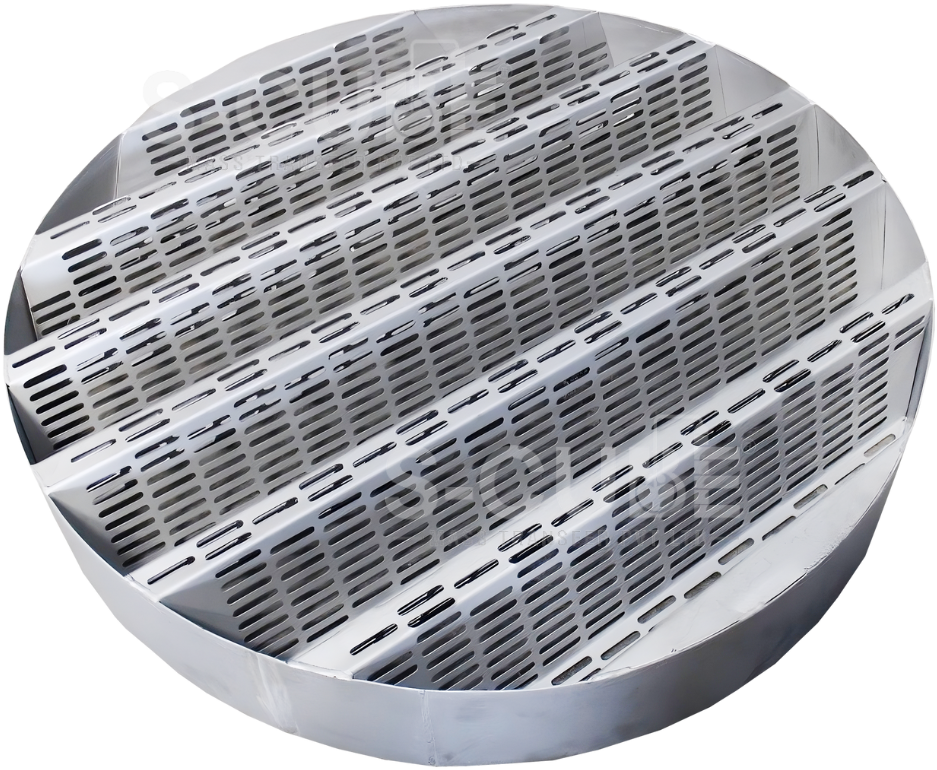

The multibeam support is a leading random packing support grid, renowned for its superior stiffness and robust loading capacity. Designed to withstand intense pressures from both packing and flowing liquids, it ensures the stability of packed beds under extreme conditions. The open area of the multibeam packing is optimized for large-diameter and heavy-duty distillation columns, making it a preferred choice for demanding industrial applications.

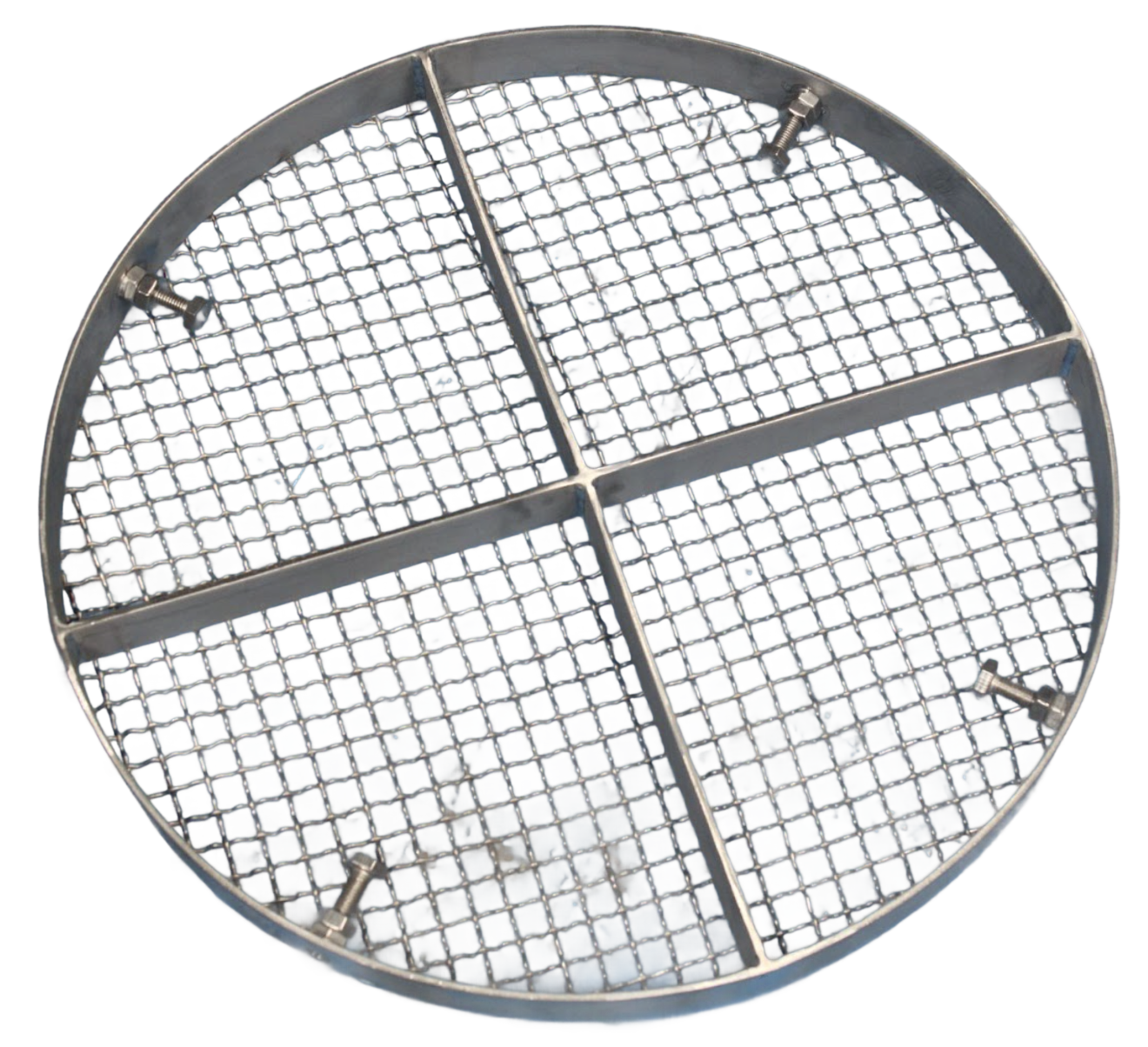

S-Cube's bed limiters are essential for protecting separation vessels. These components are designed to prevent unexpected bed movements, often caused by pressure fluctuations or significant liquid and gas surges. By using bed limiters, the movement of packing materials within the system is controlled, minimizing the risk of damage and ensuring smooth, uninterrupted operation.
FAQs
We offer 10 types of liquid distributors including: Orifice Type Distributor, Weir Type Distributor, Notched Trough Distributor, Perforated Pipe Distributor, Spray Nozzle Distributor, Pan Type Distributor, Through Type Distributor, and others, each designed for specific applications.
Proper liquid distribution is critical for achieving optimal column performance. Poor distribution leads to channeling, reduced efficiency, and lower separation performance. Good distribution ensures uniform liquid flow across the column cross-section.
The choice depends on factors such as: liquid flow rate, column diameter, operating pressure, liquid properties, turndown requirements, and whether the distributor is for initial distribution or redistribution.
Initial distributors are used at the top of packed sections to distribute liquid entering the column. Redistributors are installed at intervals within packed sections to correct any maldistribution that may have developed.
Yes, many distributor types are designed with turndown capability. Weir type and pan type distributors typically offer better turndown ratios compared to orifice type distributors.
