S Cube Mass Transfer Pvt Ltd is a leading Distillation Trays manufacturers, suppliers, and exporters in India. Distillation Trays are a critical component in any distillation column tray system, playing a key role in vapor-liquid interaction and enhancing separation efficiency in various industries. With increasing demand for high-performance trays for distillation column operations, modern engineering has significantly evolved to improve tray design, durability, and operational efficiency.
Distillation trays, also known as fractionating column tray systems, are widely used in distillation column internals where precise vapor-liquid separation is required. These trays help in maximizing contact between vapor and liquid phases, which directly improves distillation column tray efficiency. As industries adopt advanced column tray design methods, there is a strong shift toward innovative distillation column trays and packing combinations to achieve better productivity with reduced energy consumption.
Working Principle
The working principle of distillation trays is based on the interaction between vapor rising from the bottom of the distillation column and liquid flowing downward across the trays. Each distillation column tray provides a stage where vapor and liquid come into contact, allowing mass transfer and separation based on differences in volatility. This process is fundamental to achieving efficient vapor-liquid separation in fractionation tray systems.
Types of Distillation Trays
A well-known Distillation Trays manufacturers in India, we are providing the best quality Distillation Trays such as:

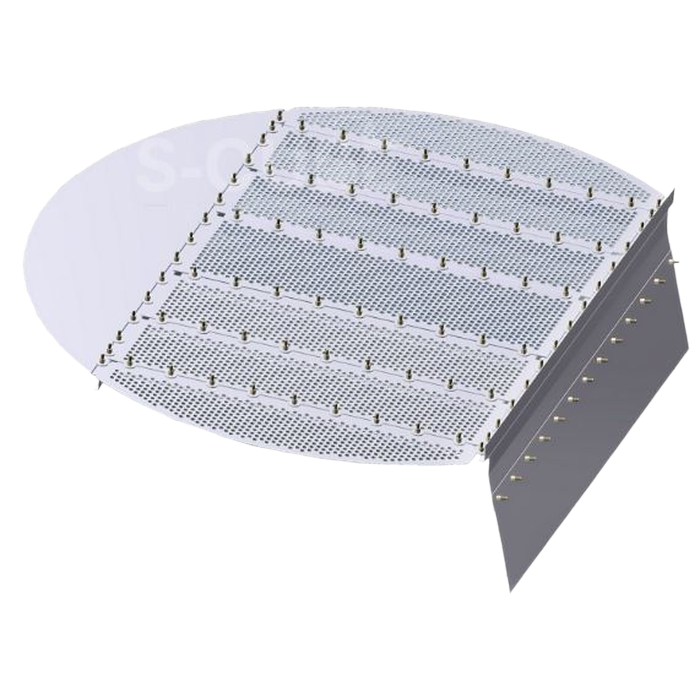

- SCM Sieve Trays: Sieve trays are perforated plates where the gas phase rises through the holes, and the liquid phase flows across the top of the tray. The interaction between the two phases promotes mass transfer.
- Perforation Size: Typically ranges from 3mm to 12mm. The size affects the Vapour flow, liquid level & Mass transfer.
- Open Area: Generally, between 6% to 15% of the total tray area. A higher open area can lead to weeping, while a lower open area can cause flooding.
- Downcomer Area: This is the area where the liquid flows down to the tray below. It's typically 6% to 25% of the total tray area.
- Material: Stainless steel, carbon steel, or other corrosion-resistant alloys, depending on the process fluid.
- SCM Floating Valve Tray: Floating valve trays are ideal for scenarios demanding higher turndown ratios. They offer superior efficiency across an extensive operational range compared to sieve trays due to their ability to control vapor flow. S-Cube Mass Transfer Pvt. Ltd. offers a variety of floating valve trays, including a rectangular valve with a unique design that prevents spinning and wearing, as well as conventional round valve trays as a cost-effective option. All floating valve trays are made from high-quality materials and can be custom-designed to meet your exact requirements.
- Bubble Cap Trays: These trays have risers or chimney-like structures (caps) that force the vapor to bubble through the liquid, enhancing contact and mass transfer.
- Cap Diameter: Typically ranges from 25mm to 200mm.
- Riser or Chimney Height: Usually 50mm to 100mm.
- Slot Width: Around 10mm to 30mm, which determines the vapor velocity.
- Material: Often made of stainless steel or other corrosion-resistant materials.
- Spacing: The distance between the caps can vary, but it's typically designed to optimize vapor-liquid contact.
- SCM Fixed Valve Tray: Fixed valve trays are a type of distillation tray that combines the advantages of sieve trays and float valve trays. They have tapered, rectangular valves that are formed out of the tray deck and are oriented parallel to the liquid flow.
- SCM Cartridge Tray: Cartridge trays are typically used in narrow flanged columns where internal setups are impractical. These columns often have diameters between 300 and 800 mm (12" to 30"). For ease and quick installation, cartridge trays are assembled in groups. They can accommodate a variety of tray decks and downcomers.
Advantages over traditional sieve trays:
- Lower froth height and less entrainment: The lateral release of vapor through the valves helps reduce froth height and entrainment (carryover of liquid droplets with vapor), which prevents product loss and contamination.
- Increased capacity and improved turndown: Fixed valve trays can handle higher vapor and liquid loads than sieve trays and have a wider turndown ratio (ratio of maximum to minimum operating rates), making them more versatile and adaptable.
- Superior mechanical strength: The fixed valves are integrated into the tray deck, meaning there are no moving parts to wear out, resulting in a mechanically strong and durable design.
- Excellent fouling resistance: Large valve openings facilitate easy cleaning, which helps prevent fouling (buildup of deposits) that can reduce efficiency and lead to operational problems.
Features of Distillation Trays
One of the leading Distillation Trays suppliers in India, our all-types of Distillation Trays are included with new technological formulations such as:
- High Efficiency Design: Modern distillation trays are engineered to deliver superior vapor-liquid contact, significantly improving separation efficiency in distillation column tray systems. Advanced column tray design techniques ensure uniform vapor distribution and minimal entrainment losses. These innovations result in high-performance trays for distillation column operations with reduced energy consumption.
- Low Pressure Drop: Distillation column trays are designed to minimize pressure drop while maintaining high efficiency in distillation tray column systems. This feature is crucial for reducing operational costs and improving overall plant performance. New technological updates include optimized tray geometry and materials that enhance flow dynamics without compromising efficiency.
- Corrosion Resistance: High-quality materials such as stainless steel and specialized alloys are used in distillation column internals to ensure long-lasting performance in harsh environments. This makes the trays suitable for chemical, petrochemical, and pharmaceutical industries. Advanced coatings and anti-corrosion treatments further extend the lifespan of fractionation trays.
- Flexibility in Operation: Distillation tray types such as multi pass distillation trays and dual flow distillation trays offer flexibility to handle varying process conditions. These trays can adapt to different vapor and liquid flow rates without compromising performance. Modern designs incorporate adjustable features that allow customization based on specific industrial requirements.
Applications of Distillation Trays
Being the best Distillation Trays wholesalers and exporters in India, our all types of Distillation Trays are included with new feature and highly used in multiple applications such as:
- Petrochemical Industry: Distillation trays are extensively used in petrochemical plants for separating crude oil into various fractions using distillation column tray systems. These trays play a crucial role in achieving high efficiency in distillation tray column operations. Advanced high-performance trays for distillation column applications ensure better yield and energy savings.
- Chemical Processing: In chemical industries, distillation column trays and packing are used for separating complex mixtures and ensuring product purity. Fractionating column tray systems are essential for processes that require precise separation. New innovations in column tray design improve efficiency and reduce operational costs in chemical processing units.
- Pharmaceutical Industry: Distillation trays are used in pharmaceutical manufacturing for purifying solvents and active ingredients. These distillation column internals ensure high levels of accuracy and consistency in separation processes. Advanced materials and hygienic designs make them suitable for sensitive pharmaceutical applications.
- Food and Beverage Industry: Distillation tray column systems are used in the production of alcohol and other beverages where precise separation is required. These trays help maintain quality and consistency in the final product. Modern tray designs ensure energy efficiency and compliance with industry standards.
Choose S Cube Mass Transfer Pvt Ltd is a leading Distillation Trays manufacturers, suppliers, and exporters in India. With continuous innovation in distillation column trays and packing, the focus remains on improving efficiency, durability, and adaptability across various applications. The integration of advanced technologies ensures that distillation tray column systems continue to evolve, supporting industries with reliable and high-performance solutions.
